Technical Specifications

Discover the impressive capabilities of M/F MELEK SU, Turkey's most modern RoRo vessel with state-of-the-art engineering and premium amenities.

Vessel Details

Basic Information

9985033

IMO Number

1,999 GT

Gross Tonnage

2,105 tons

Deadweight Tonnage

Turkey

Flag State

Turkish Lloyd

Classification

13 knots

Max Speed

12 knots

Service Speed

10 knots

Eco Speed

Official Registration

Registration Information

TCA7283

Call Sign

Istanbul

Registry Port

271050877

MMSI Number

Turkish Lloyd

Classification Society

Turk P&I

P&I Insurance

#34331

Policy Number

29.06.2023

Entry Date

Build Details

2022 Construction

December 1, 2022 (01.12.2022)

Built

December 2022

Delivery

2 Years

Age

€13M

Purchase Price

Trabzon

Location

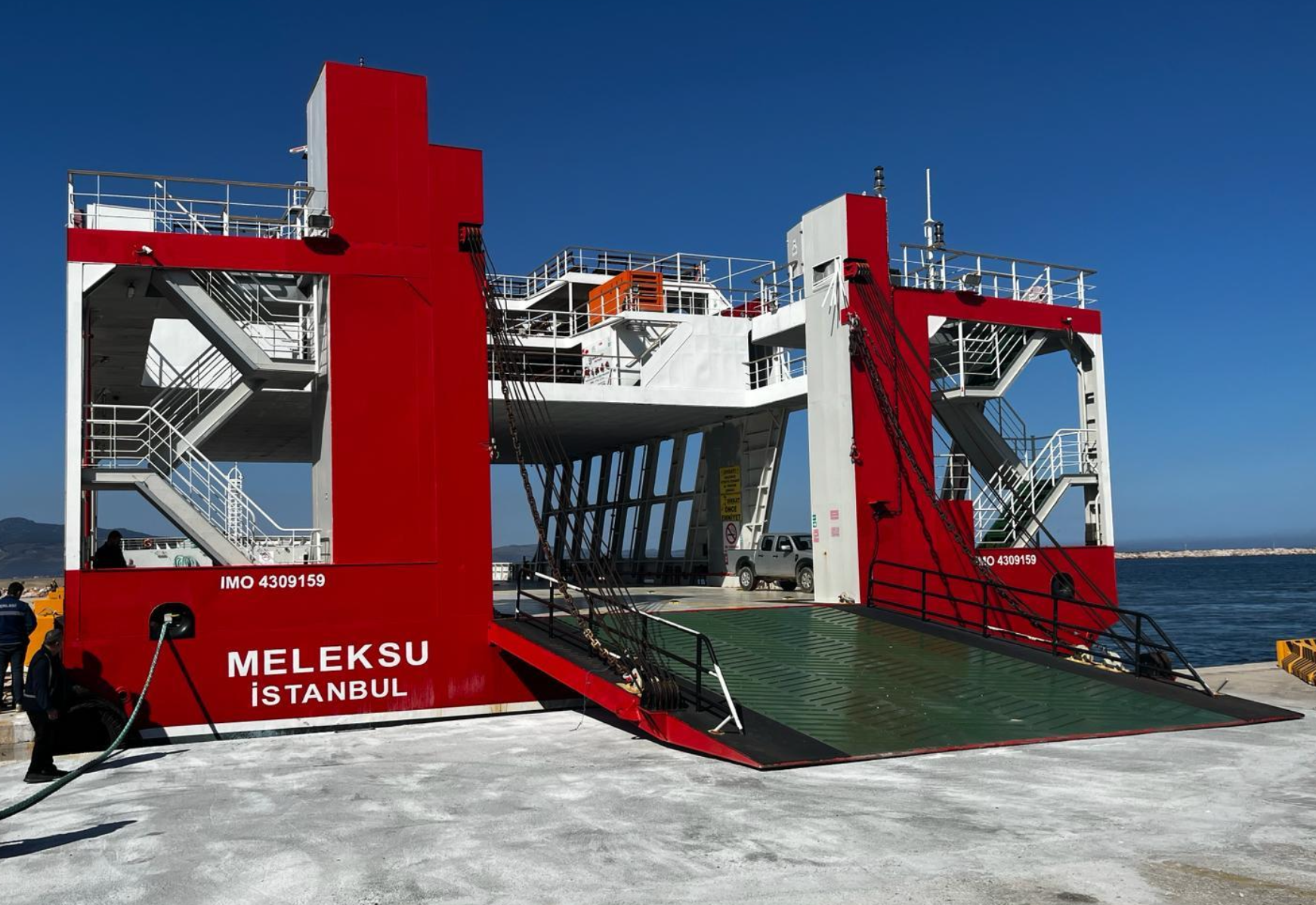

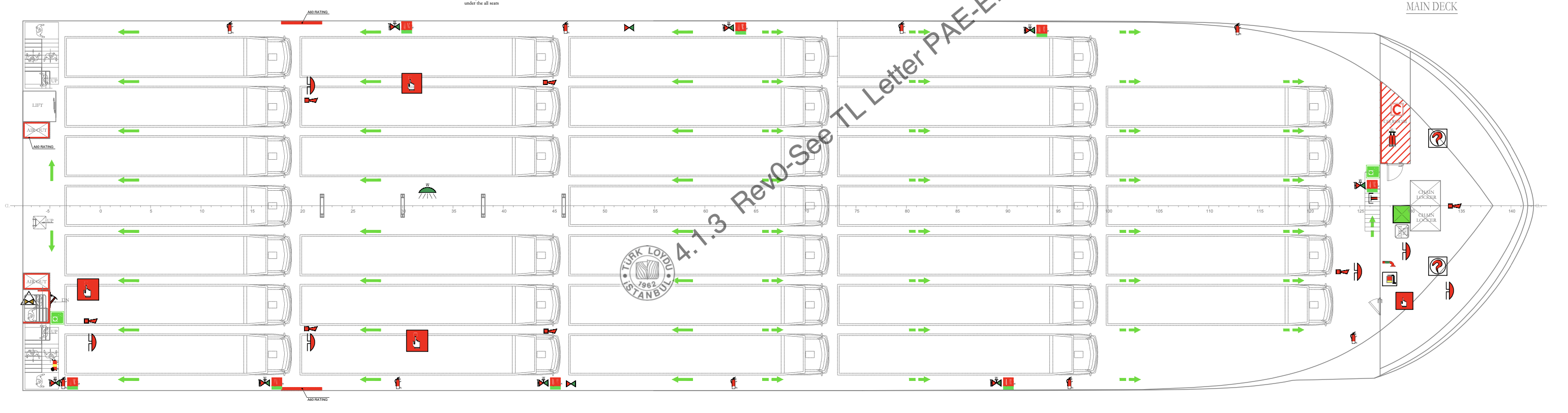

Cargo Capacity

Vehicle Transport

32 units

Trucks/Trailers

445 m

Lane Meters

5.5 m

Deck Height

Heavy Duty

Load Capacity

Passengers

Seasonal Capacity

778 pax

Summer

83 pax

Winter

Premium

Facilities

SOLAS

Safety

Power System

Mitsubishi Engines

2× Mitsubishi S16R-T2MPTK

Main Engines

1,380 kW

Port (Sancak)

1,380 kW

Starboard (İskele)

2,760 kW

Total Power

3 units, 875 kW

Generators

272 kW (Diesel)

2× Baudouin

331 kW (Diesel)

1× Baudouin

311 kW Baudouin (Diesel drive shaft)

Bow Thruster

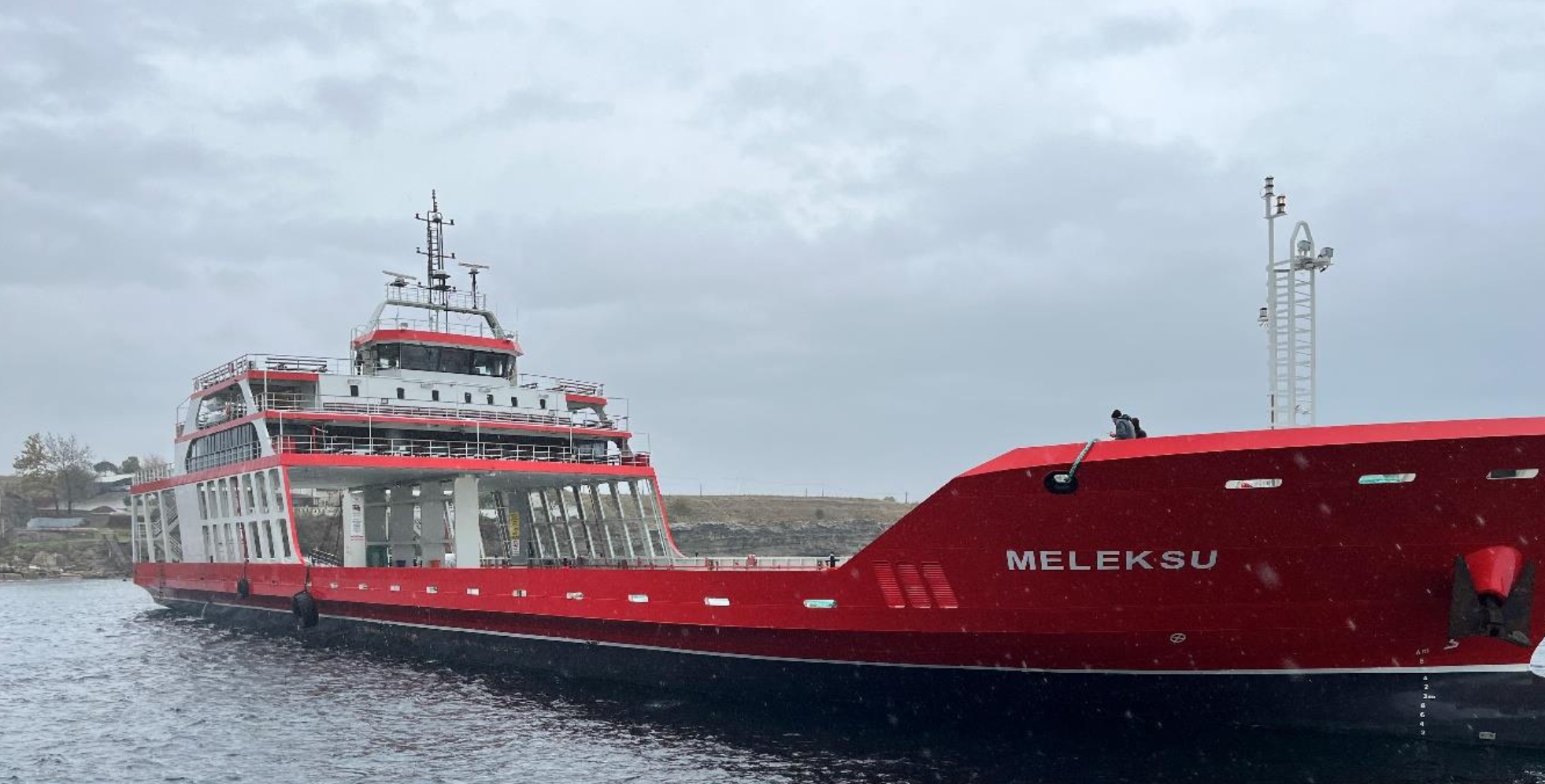

Dimensions

Physical Specs

89.95 m

Length

22 m

Beam

3.5 m

Draft

5.0 m

Depth

20 m

Air Draft

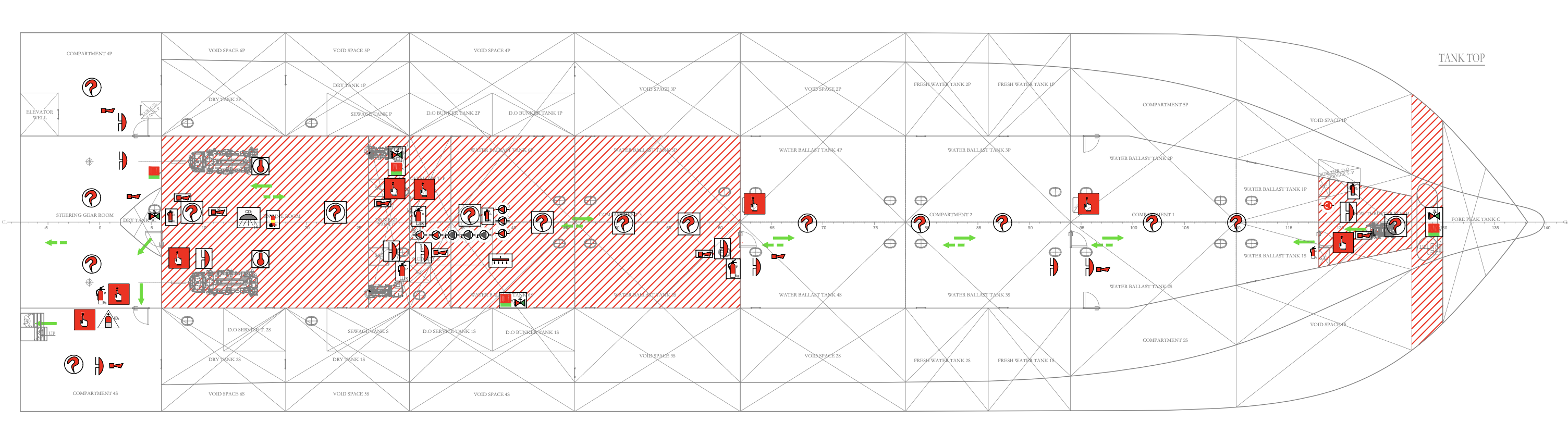

Fuel and Tank Capacities

Storage Systems

166,149 m³

Diesel/Fuel Oil Tank

45.90 m³

Fresh Water Tank

6 tons

Fuel Capacity

350-30 tons

Lubricating Oil

Additional Vessel Specifications

Build & Design Details

5.50 m

Garage Deck Height

Trabzon Sürmemede, Turkey

Build Location

KETEKS (Built 2018-2022)

Builder

Turkish Lloyd Class

Design

Pricing Information

Vessel pricing reflects market conditions and material costs over time

2022 Purchase Price

€13,000,000

Original purchase price in 2022

This was the market price when the vessel was constructed and ready for operation in 2022.

Current Minimum Price (2025)

€22,000,000

Minimum possible purchase price

Current market conditions reflect significant increases in steel raw material prices and workmanship costs.

Why the Price Increase?

The significant price increase from €13,000,000 (2022) to €22,000,000 (2025) is primarily due to:

•Steel Raw Material Prices: Steel prices have increased dramatically over the past 5 years, with current rates significantly higher than 2022 levels.
•Workmanship Costs: Current workmanship rates are approximately $10 USD per kg, considering the vessel's weight and complexity.
•Market Conditions: Overall market dynamics, supply chain disruptions, and increased demand have contributed to higher vessel construction and replacement costs.
